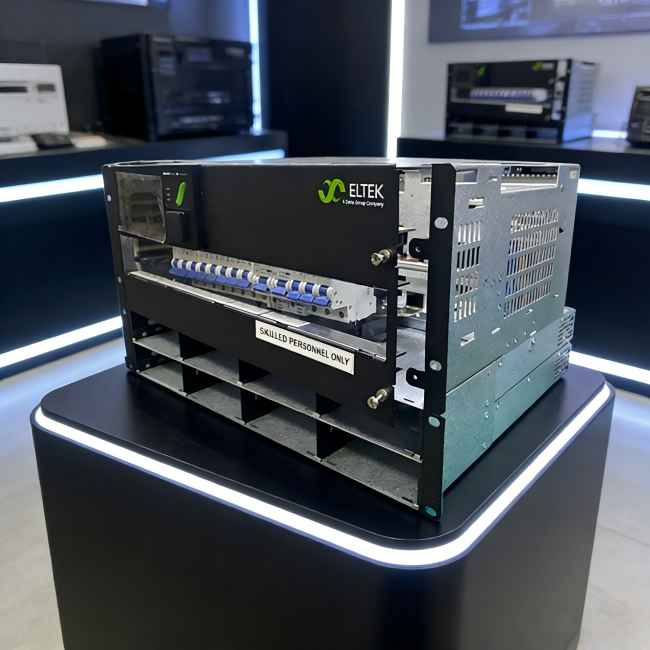

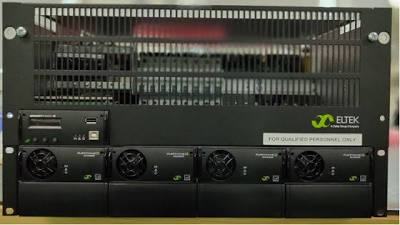

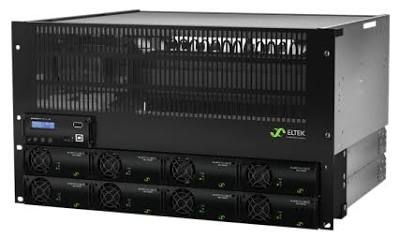

5U Rack-Mount 48V 12kW Telecom Power Core for Reliable Network Infrastructure

Description

Keywords: 5U Rack Mount, Telecom Infrastructure, 19-inch Cabinet, Edge Computing
Optimized for the evolving landscape of 5G, edge computing, and traditional telecom hubs, the Eltek 48Vdc 12kW Powercore offers a compact 5U footprint that fits perfectly into standard 19-inch racks. Its vertical space efficiency allows site engineers to maximize the utilization of cabinet space for active networking gear. The system is purpose-built for the rigors of outdoor telecom enclosures and indoor data halls alike, supporting a wide operating temperature range. Whether you are deploying a remote macro station or a centralized switching office, the Smartpack R controller provides the necessary connectivity for remote management via Ethernet or SNMP, reducing the need for costly on-site technician visits. The integration of high-wattage modules (3kW each) in a compact frame ensures that your infrastructure can handle the increasing power demands of modern radio units and high-speed data processors while maintaining a small physical footprint.

Specification

Product Name	48Vdc 12kW Power core
Brand	Eltek
System Height	5U High-Density Rack Mount
Total Output Power	12kW (Max)
Nominal Output Voltage	48Vdc (Adjustable range typically 43.2 - 58Vdc)
Rectifier Modules	4 x Flatpack2 48/3000 HE (P/N: 241119.105)
Rectifier Slots	4 x Rectifier Slots (Full occupancy)
System Controller	Smartpack R Intelligent Controller
Battery Distribution	4 x 125A/1P Battery Breakers
NPL Distribution	2 x 63A, 3 x 25A (Non-Priority Load)
Load Distribution	2 x 40A, 4 x 25A, 2 x 16A (No-Priority Load)
Spare Slots	2 x Spare (F1-F10) & 2 x Spare (F11-F17)
Efficiency	Up to 96.5% (High Efficiency technology)
Operating Temperature	-40°C to +75°C (-40°F to +167°F)
